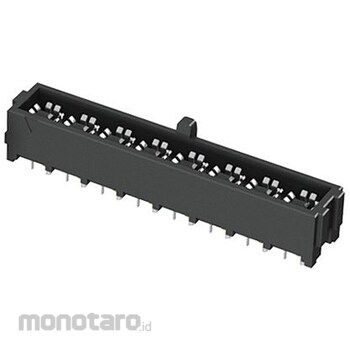

SAMTEC Samtec PCB Socket, 8-pole, 4mm, 1-row, Through-hole Mount

Specification
*Number of Positions: 8*Number of Rows: 1*Pitch: 4mm*Type: Board-to-Board*Mounting Type: Through-Hole Mounting*Connection Orientation: Straight*Termination Method: Solder*Rated Current: 2.36 A, 4.4 A*Rated Voltage: 200 V*Series: IJ5*Contact Material: Copper*Samtec IJ5 Series 4.00 mm 50 Ohm High-Isolation Board-to-Board RF Jack Strip. The IJ5 Series 50 Ohm High-Isolation Board-to-Board RF Jack Strip features a 4.00 mm contact pitch and a 10 mm BTB stack height. This IJ5 4.00 mm RF jack strip is part of the IsoRate High-Isolation Interconnect System, which performs up to 9.5 GHz and 19 Gbit/s. The IsoRate interconnect system features rugged edge-rate contacts, providing high insulation at a lower cost than traditional turned RF contacts. The IJ5 Series High-Isolation Board-to-Board RF Jack Connector is available in 1- and 2-row configurations with up to eight jacks per row. This IsoRate IJ5 series 4.00 mm 50 Ohm board-to-board RF jack strip mates with IsoRate IP5 RF plug connectors.
