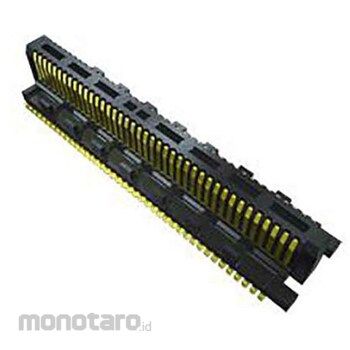

SAMTEC Samtec PCB Socket, 60 Position, 0.4mm, 2 Row, Surface Mount

Specification
*Number of Positions: 60*Number of Rows: 2*Pitch: 0.4mm*Type: Board-to-Board*Mounting Type: Surface Mount*Connection Direction: Straight*Terminal Method: Solder*Rated Current: 1.3A*Series: SS4*Contact Material: Bronze*Ultra-Fine 0.4mm Pitch, Low-Profile Socket Strip SS4 Series. This SS4 series ultra-fine 0.4mm pitch board-to-board low-profile, double-row socket strip features a slim body design for tight board spacing. This SMT ultra-fine 0.4mm pitch low-profile socket strip is constructed of phosphor bronze with Razor BeamTM contacts, black LCP insulators, 0.25μm gold-plated contacts, and matte tin-plated tails, making it ideal for high-speed, heavy-duty applications. It features a 3.50mm contact swipe and standard polarization with undercut retention notches for increased mating force. Part numbers SS4-xx-3.00-xxx-xx have a height from the board of 3.50mm. Part number SS4-xx-3.50-xxx-xx has a height of 4.00 mm from the board.
