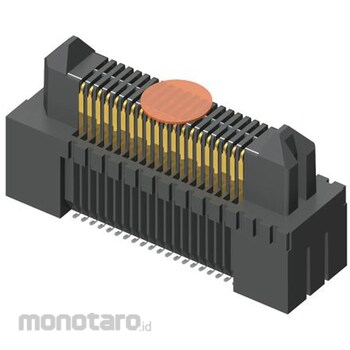

SAMTEC Samtec PCB Header, 100 Way, 0.5mm, 2 Rows, ERM5-050-02.0-L-DV-TR

Specification
*Series: ERM5*Pitch: 0.5mm*Number of Positions: 100*Number of Rows: 2*Connection Direction: Straight*Shrouded/Unshrouded: Shrouded*Mounting Type: Surface Mount*Termination Method: Solder*Contact Material: Phosphor Bronze*Rated Current: 1.5A*Rated Voltage: 194.0V*Samtec ERM5 0.5mm High-Speed SMT Board-to-Board Header Connector. The ERM5 0.5mm high-speed board-to-board header delivers 28 Gbps performance. This ERM5 0.5mm SMT high-speed board-to-board header connector features rugged edge-rate contacts with a high contact wipe designed for high-speed, high-cycle applications. The edge-rate contacts feature a smooth milled surface that reduces contact wear, improving durability and lifespan. The milled surface also reduces insertion and extraction forces, allowing the connector to zip shut during extraction. The edge-rate contacts also reduce broadside coupling and crosstalk, ensuring high signal quality and electrical performance. This ERM5 0.5mm high speed header connector is paired with the ERF5 series 0.5mm high speed SMT board-to-board socket to form a mating height of 7 to 12mm.
