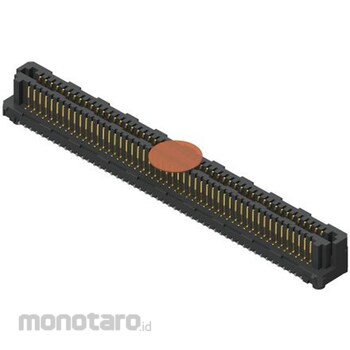

SAMTEC Samtec PCB Connection Pin Header, 40 Way, 0.8mm, 2 Rows, LSEM-120-03.0-L-DV-ANK-TR

Specification
*Series: LSEM*Pitch: 0.8mm*Number of Positions: 40*Number of Rows: 2*Connection Direction: Straight*Shrouded/Unshrouded: Shrouded*Connector System: Board-to-Board*Termination Method: Solder*Surface Finish: Gold*Current Rating: 1.8A*Samtec LSEM Series 0.8mm High-Speed Board-to-Board Reversible SMT Strip Connector. The LSHM Series 0.8mm High-Speed, High-Density Vertical, Right-Angle Mount Reversible SMT Board-to-Board Strip features a rugged, slim row-to-row design. The self-mating design of this reversible high-speed board-to-board connector reduces inventory costs. The LSHM 0.8mm High-Speed Board-to-Board Connector features high-retention Razor Beam contacts designed for high-speed, fine-pitch, and reliable interconnections. The contacts feature undercut retention notches for increased mating force and an audible click when securely connected. Vertical mount connectors can be intermixed with each other in stack heights from 6 to 12 mm for increased design flexibility. Features and Benefits: High speed, high density configurations Rugged slim design Reversible design reduces inventory costs Razor Beam contacts for reliable, high speed electrical connections High insertion and extraction forces Various mating height options offer design flexibility. Applications: The LSHM series 0.8 mm board-to-board reversible connectors are ideal for use in high speed, high density parallel, vertical and coplanar systems.
