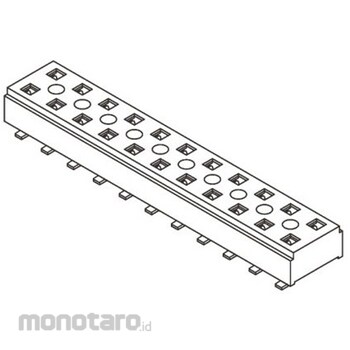

SAMTEC Samtec PCB Socket, 20 Position, 2mm, 2 Row, Surface Mount

Specification
*Number of positions: 20*Number of rows: 2*Pitch: 2mm*Type: Board-to-board*Mounting type: Surface mount*Connection direction: Straight*Terminal method: Solder*Rated current: 3.3A*Series: CLT*Contact material: Bronze*For mating with TMM series headers for board-to-board connections. See representative part number: 507-7516. CLT Series Low-Profile Dual Wipe Socket. This CLT series board-to-board low-profile dual wipe socket from Samtec features 0.25 μm gold-plated Tiger Claw contacts and matte tin-plated board tails. This CLT series board-to-board low-profile dual wipe socket product is available in through-hole and SMT types. This CLT series board-to-board low-profile dual wipe socket, through-hole type, has a PCB tail length of 2.16 mm and a height from the PCB of 2.121 mm. This CLT series board-to-board low-profile dual wipe socket, SMT type, has a height from the PCB of 2.27 mm.
