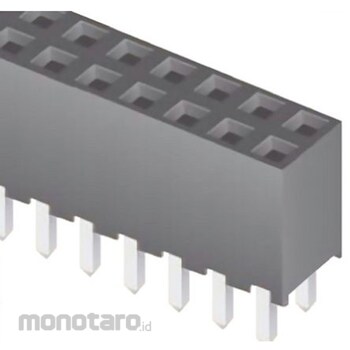

SAMTEC Samtec PCB Socket, 12-pole, 2mm, 2-row, Through-hole Mount

Specification
*Number of poles: 12*Number of rows: 2*Pitch: 2mm*Type: Board-to-board*Mounting type: Through-hole mounting*Connection direction: Straight*Termination method: Solder*Rated current: 12A*Rated voltage: 500V*Series: SQW*Contact material: Bronze*For mating TMM SMT headers, see representative part numbers 481-4780 481-4780 . For mating TMM through-hole headers, see representative part numbers 765-6212 765-6212 . SQW Series, Rugged Socket. This SQW series 2mm pitch board-to-board through-hole socket strip from Samtec features Tiger Buy contacts with 0.25μm gold plating on the contact area and matte tin plating on the board tail area. This SQW series 2mm pitch board-to-board through-hole socket strip has a 2mm row spacing. The SQW series 2mm pitch board-to-board through-hole socket strip has a height of 6.35mm from the board. Insulator material: Black LCP. Temperature range: -55 to 125°C.
