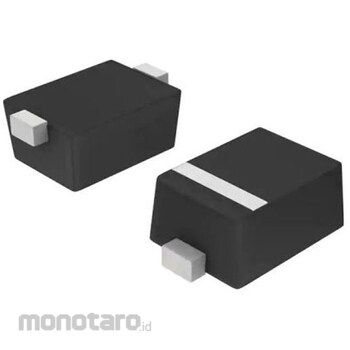

onsemi onsemi Rectifier Diode, 200mA Surface Mount, 2-Pin SOD-923 AEC-Q101 Schottky Barrier -460mV

Specification
*Mounting Type: Surface Mount*Package Type: SOD-923*Maximum Continuous Forward Current: 200mA*Diode Configuration: Single*Rectifier Type: Schottky Diode*Diode Type: Schottky*Number of Pins: 2*Maximum Forward Drop Voltage: -460mV*Number of Elements per Chip: 1*Diode Technology: Schottky Barrier*Peak Non-Repetitive Forward Surge Current: 2A*Schottky rectifiers are optimized for very low forward voltage drop and low leakage current and are used in a wide range of DC-DC converter, clamp, and protection applications in portable devices.The NSR0240P2 in the SOD-923 miniature package enables designers to meet the challenging challenges of achieving high efficiency and meeting space-saving requirements. Ultra-low forward voltage drop: 460 mV @ 100 mA Low reverse current: 0.2 A @ 25 V VR Continuous forward current: 200 mA Power dissipation: 240 mW (at minimum trace) Very fast switching speeds Low capacitance - CT: 7 pF Products with part numbers prefixed with "NSV" are ideal for automotive and other applications requiring specific site and control change requirements and PPAP compliance Lead-free devices End Equipment Mobile handsets MP3 players Applications LCD and keypad backlighting Camera flash Back/boost DC-DC converters Reverse voltage and reverse current protection Clamping and protection
