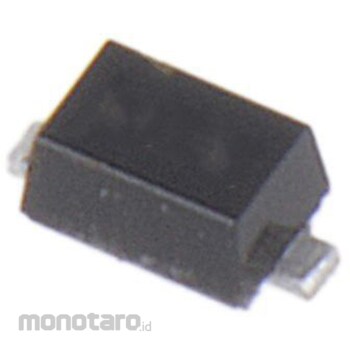

onsemi onsemi Zener Diode 34V Surface Mount 500 mW

Specification
*Diode Configuration: Single V*Number of Elements per Chip: 1*Maximum Power Dissipation: 500 mW*Package Type: SOD-523*Zener Type: Voltage Regulator*Number of Pins: 2*Test Current: 2 mA*Maximum Zener Impedance: 500 Ω*Maximum Reverse Leakage Current: 50 nA*Dimensions: 1.3 x 0.9 x 0.7 mm*Min Operating Temperature: -65°C/V*This Zener diode voltage regulator is housed in an SOD-523 surface-mount package. Designed to provide voltage regulation protection, it is particularly attractive where space is limited. It is ideal for applications such as cell phones, handheld portables, and high-density PC boards. Typical Zener breakdown voltage range: 2.4 to 75V Steady state rating: 500mW Small body dimensions: 0.047" x 0.032" (1.20mm x 0.80mm) Low body height: 0.028" (0.7mm) Class 3 (>16kV) Human Body Model ESD rating Polarity band indicates cathode Lead finish: 100% matte tin Certified maximum reflow temperature: 260C Lead-free packaging available PPAP compliant Part numbers beginning with "SZ" are intended for automotive and other applications with specific site or control change requirements Applications Suitable for space-constrained applications such as cell phones, handheld portables, and high-density PC boards.
