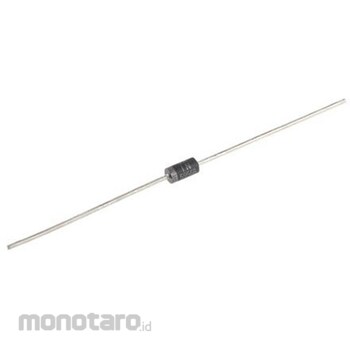

onsemi onsemi Zener Diode 24V Through Hole 3W

Specification
*Standard Zener Voltage: 24V*Mounting Type: Through-Hole*Maximum Power Dissipation: 3W*Package Type: Case 59-10*Zener Type: Voltage Regulator*Zener Voltage Tolerance: ±5%*Number of Pins: 2*Test Current: 15.6mA*Maximum Zener Impedance: 700Ω*Maximum Reverse Leakage Current: 1μA*Dimensions: 1.91 (Dia.) x 4.56mm*Forward Voltage: 1.5V*This is a complete series of 3.0 W Zener diode voltage regulators with tight limits and excellent operating characteristics, reflecting the superior capabilities of silicon oxide passivated junctions, all housed in an axial-leaded, transfer-molded plastic package that provides protection in all common environmental conditions. Zener voltage range: 3.3 to 200V >Class 3 (16 KV) ESD rating per Human Body Model Surge rating: 98 Watts @ 1 ms Maximum limits guaranteed on up to six electrical parameters Package is larger than traditional 1 W packages Mechanical characteristics: Case: Rugged, transfer molded, thermoset plastic Finish: All exterior surfaces are corrosion resistant and leads are easily soldered Maximum deactivation temperature required for soldering: 230°C, 1/16 from case for 10 seconds Polarity: Cathode indicated by polarity band Mounting position: Any Lead-free packaging available End product Power supply
