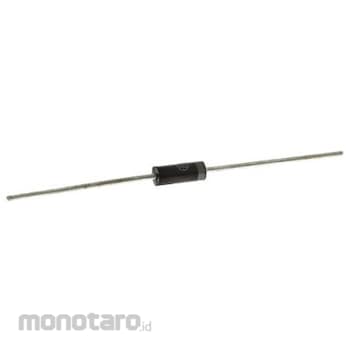

onsemi onsemi Zener Diode 18V Through Hole 5W

Specification
*Diode Configuration: Single V*Mounting Type: Through Hole*Maximum Power Dissipation: 5 W*Package Type: Case 017AA*Zener Type: Voltage Regulator*Zener Voltage Tolerance: ±5%*Number of Pins: 2*Test Current: 65 mA*Maximum Zener Impedance: 75 Ω*Maximum Reverse Leakage Current: 500 nA*Dimensions: 3.68 (Dia.) x 8.89 mm*Min. Operating Temperature: -65 °C V*This is a complete series of 5.0 W Zener diode voltage regulators with tight limiting and excellent operating characteristics, reflecting the superior capabilities of silicon oxide passivated junctions, all housed in an axial-leaded, transfer-molded plastic package that provides protection in all common environmental conditions. Surge voltage rating up to 180 W at 8.3 ms. Maximum limits guaranteed for seven electrical parameters. Case: Rugged, transfer-molded, heat-set plastic. Finish: All exterior surfaces are corrosion-resistant, and leads are easily soldered. Polarity: Cathode indicated by color band. When operated in Zener mode, positive cathode is used relative to anode. Mounting position: Any. Weight: 0.7 grams (approximate)
