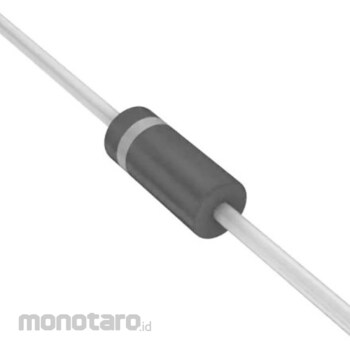

onsemi onsemi Zener Diode 27V Through Hole 5W

Specification
*Diode Configuration: Single V*Number of Elements per Chip: 1*Maximum Power Dissipation: 5 W*Package Type: Case 017AA*Zener Type: Voltage Regulator*Zener Voltage Tolerance: ±5%*Number of Pins: 2*Maximum Zener Impedance: 5 Ω*Maximum Reverse Leakage Current: 500 nA*Dimensions: 3.68 (Dia.) x 8.89 mm*Min. Operating Temperature: -65°C/V*This is a complete series of 5.0 W Zener diode voltage regulators with tight limits and excellent operating characteristics, reflecting the superior performance of silicon oxide passivation junctions. All are packaged in axially leaded, transfer-molded plastic packages for protection in all common environmental conditions. Surge rating up to 180 watts (8.3 ms). Maximum limits guaranteed for seven electrical parameters. Case: Void-free, transfer-molded, thermosetting plastic. Finish: All external surfaces are corrosion-resistant, and leads are easily soldered. Polarity: Cathode indicated by color band. When operated in Zener mode, anode is positive relative to cathode. Mounting position: Any. Weight: Approximately 0.7 grams
