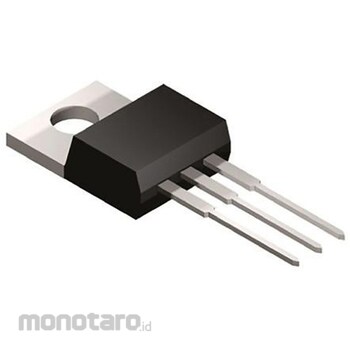

onsemi onsemi N-Channel MOSFET 150 V 4 A Through Hole Package TO-220AB 3 Pin

Channel Type = N
Maximum continuous drain current = 4 A
Maximum drain-source voltage = 150 V
Series = PowerTrench
Mounting Type = Through Hole Pin Count = 3
Maximum drain-source resistance = 54 mΩ
Channel mode = Enhancement type Minimum gate threshold voltage = 2V
Maximum power consumption = 135000 mW
Transistor configuration = Single Maximum gate-source voltage = -20 V, +20 V
Width = 4.83mm
Operating temperature Min = -55°Cmm
Fairchild Semiconductor PowerTrenchR N-Channel MOSFETs up to 9.9 A
