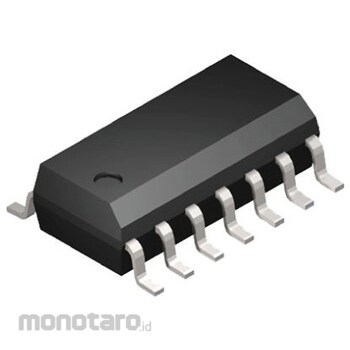

onsemi onsemi Op-amp, Surface Mount, 4 Circuits, ±2 Power Supplies, Single Power Supply, MC33274ADR2G

Mounting type: Surface mount package type: SOIC
Power supply type ±2 power supplies, Number of single power supply circuits 4
Number of pins: 14
Standard single supply voltage 3-36 V
Typical gain bandwidth product: 24MHz
Standard dual supply voltage ±1.5 ±18V
Typical slew rate: 10V/μs
Maximum operating frequency 100 kHz
Operating temperature Max +85°C
Typical voltage gain 100 dB
Width 4mm
ON Semiconductor's MC33272A 74A and NCV33272A 74A high-slew-rate, low-input-offset-voltage operational amplifiers (op amps). The ON Semiconductor MC33272A 74A and NCV33272A 74A dual and quad op amps utilize bipolar inputs and patented Zip-R-Trim technology to reduce input offset voltage. They offer low input voltage and a high gain-bandwidth product. Dual-doublet frequency compensation is used to increase slew rate while maintaining low input noise. The all-NPN output stage features no deadband crossover distortion, a large output voltage swing, and excellent phase-gain margin. The low open-loop high-frequency output impedance provides symmetrical AC frequency performance for both source and sink. Trimmed input offset voltage to 100 μV (typical) Low input bias current: 300 nA Low input offset current: 3.0 nA High input resistance: 16 M Low noise: 18 nV/√Hz 1 kHz High gain bandwidth product: 24 MHz 100 kHz High slew rate: 10 V/μs
