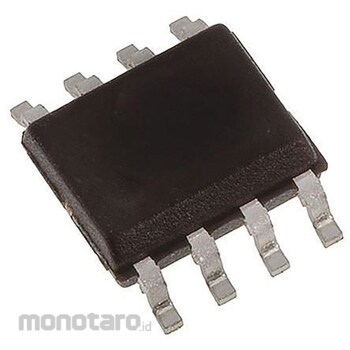

onsemi onsemi Op-amp, Surface Mount, 2 Circuits, Dual Power Supply, NE5532D8R2G

Amplifier type: Low noise mounting type: Surface mount package type: SOIC
Power supply type: Dual power supply circuit count: 2
Number of pins: 8
Typical gain bandwidth product: 10MHz
Standard dual supply voltage ±20V
Typical slew rate 9V/μs
Operating temperature Max +70°C
Rail to Rail No.
Width 4mm
NE5532, SE5532, Internally Compensated, Low-Noise Dual Op Amps, ON Semiconductor. ON Semiconductor's NE5532 and SE5532 are high-performance, low-noise dual op amps. These op amps are suitable for high-quality professional audio equipment, instrumentation control circuits, and telephone channel amplifier applications. They are internally compensated for a gain equal to 1. If low noise is paramount in your design, we recommend the "A" suffix versions, which offer guaranteed noise voltage specifications. Small-Signal Bandwidth: 10 MHz Output Drive Capability: 600 Ω, 10 Vrms Input Noise Voltage: 5.0 nV/sq. Hz (typical) DC Voltage Gain: 50000 Ω AC Voltage Gain: 2200 Ω, Power Bandwidth: 140 kHz Slew Rate: 9.0 V/μs Large Supply Voltage Range: ±3.0 ±20 Ω Unity-Gain Compensation
