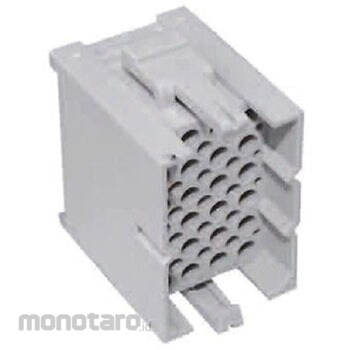

SOURIAU Souriau Heavy Duty Connector SMS Series

Specification
I3F2 / I2F3 (according to NFF16101 / NFF16102 (French railway industry flame and smoke standards)) HL3 / R23 (according to EN45545 (2009)). Souriau SMS series flame retardant quick mating cable mounting plug housing. SMS series quick Mating Flame Retardant Cable Attached Wire-to-Board / Wire-to-Wire Plug Housings feature a compact design and “push-to-mating” and “push-to-release” interconnection systems. This allows quick assembly and installation without the need for other hardware. This SMS series quick mating flame retardant cable mounting plug connector has a polyamide PA 6 UL94-V0 housing. It is fire / smoke resistant for use inside the railway and complies with the railway standard I3 / F2 according to NFF16101 and NFF16102 (standards for flame and smoke). In addition, this SMS series quick mating cable plug connector is equipped with a positive locking retention latch, a protective skirt to prevent contact damage, and a positive polarity key to prevent mismating. This SMS cable mounting plug housing is also available with a built-in strain relief hood that can accommodate a wide range of cables and identification cavities between contact cavities. SMSxxPDH3 Cable plug with strain relief hood and identification cavity SMSxxPD3: Cable plug with identification cavity without strain relief hood This SMS series quick mating cable connector is available in 2 to 24 positions. This cable connector requires the use of an optional 16 TRIM TRIO 1.6 mm diameter snap lock pin and socket pin (see typical part numbers: 687-6364 687-6364). For mating connectors, check SMS Series Quick Mating Flame Retardant Cable / Panel Mount Receptacle Housing and SMS Series Quick Mating Flame Retardant Board Mount Connectors.
