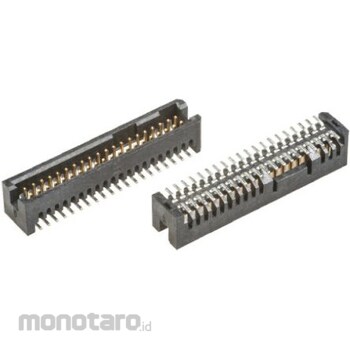

SAMTEC Samtec Board Connection Header TFML Series

Specification
Series: TFML Pitch: 1.27mm Number of Contacts: 40 Rows: 2 Body Orientation: Straight Shroud/Unshroud: Shroud Mounting Type: Surface Mount Terminal Method: Solder Contact Material: Copper Phosphate Voltage Rating: 350 V ac For board-to-board through-hole sockets, see the SFML series (Typical part number: 767-9105 767-9105). For mating board-to-board SMT sockets, please refer to the SFML series (representative part numbers: 767-9101 767-9101). Surface Mount Headers with Locking - TFML Series. From Samtec, these TFML series board-to-board headers are 1.27 mm pitch SMT terminal strips with mating locking features. It is locked by friction between the recess in the header and the boss of the mating TFML socket. The posts of the TFML series board-to-board header terminal strips are 0.46 mm in diameter. A range of TFML series board-to-board header terminal strips with 0.76 μm gold plated contacts and 0.076 μm gold plated tails. Insulator material: Black LCP Current rating: 5 A @ 20 °C (6-pole (2 x 3) feed) Operating temperature: -55 -> 125 °C
