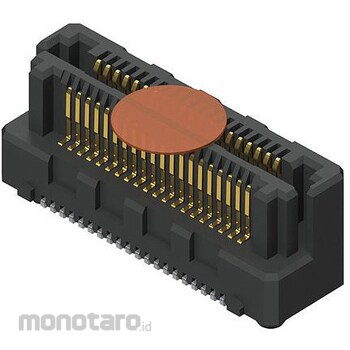

SAMTEC Samtec Board Connection Header LSHM Razor Beam Series

Specification
Series: LSHM Razor Beam Pitch: 0.5mm Number of Contacts: 40 Number of Rows: 2 Body Orientation: Vertical Shrouded/Unshrouded: Shrouded Connector System: Board to Board Terminal Method: Solder Type: Board to Board Current Rating: 2 (Per Pin) A Samtec LSHM Series 0.5 mm High Speed Board-to-Board Male/Female SMT Connector Strips. The LSHM Series 0.5 mm high-speed, high-density male/female SMT board-to-board strips feature a rugged slim row-to-row design. The LSHM 0.5 mm male/female dual board-to-board strips are available in vertical, right angle, and reverse right angle mounting. The self-mating design of this male/female high-speed board-to-board connector reduces inventory costs. High speed performance of 23 Gbps for vertical mount LSHM BTB connectors and 19 Gbps for horizontal mount LSHM BTB connectors. LSHM 0.5 mm High Speed Board-to-Board Connectors feature high retention force Razor Beam contacts and are designed for high speed, fine pitch, and secure interconnections. The contacts feature undercut retention notches that increase mating force and provide an audible click when securely connected. Vertical mounting connectors interlock with stack heights from 5 to 12 mm for greater design flexibility. This LSHM series 0.5 mm male/female dual-purpose connector also mates with the HLCD series high speed cable assemblies. Features and Benefits: High speed, high density, up to 23 Gbps Rugged, slim design Male/female design reduces inventory costs Razor Beam contacts for reliable, high-speed electrical connections High mating forces Variable mating heights Choice and design flexibility. Applications. This LSHM series 0.5 mm board-to-board male/female connector is ideal for use in high speed, high density parallel, vertical and coplanar systems.
