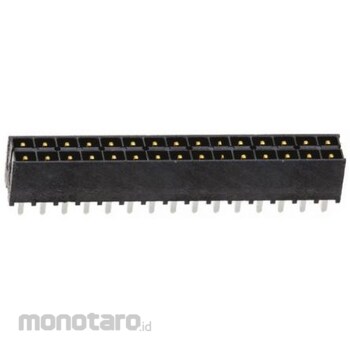

SAMTEC Samtec Board Connection Header IPT1 Mini Mate Series

Specification
Series: IPT1 Mini Mate Pitch: 2.54mm Number of Contacts: 30 Number of Rows: 2 Body Orientation: Straight Shrouded/Unshrouded: Shrouded Mounting Type: Through-Hole Termination Method: Solder Type: Board-to-Board Voltage Rating: 550 AC, 777 DC This board-to-board shrouded PCB power header terminal mates with the IPS1 series shrouded PCB power socket. See typical part number 767-6840. 2.54 mm Shrouded PCB Insulated Power Terminals IPT1 Series. IPT1 Series Mini Mate(R) board-to-board shrouded PCB insulated power header terminals feature a 2.54mm pitch spacing and a mated height of 11.05mm. This IPT1 series board-to-board insulated power header utilizes RuggedTM technology, with two rows of shrouded, 0.25μm gold-plated phosphor bronze contacts arranged within a black glass LCP insulator. The IPT1 series board-to-board through-hole power header terminals have a temperature range of -55 to +125°C at an ambient temperature of 20°C and a maximum power rating of 9A. Part number IPT1-1XX-01-LD: Straight through-hole mounting Part number IPT1-1XX-01-LD-RA: Right-angle through-hole mounting
