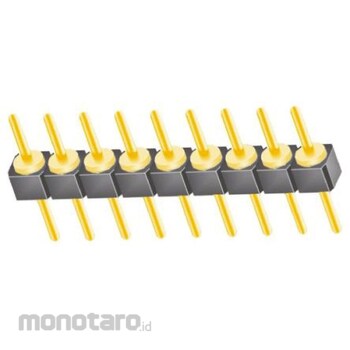

SAMTEC Samtec Pin Header TS Series

Specification
Series: TS Pitch: 2.54mm Number of Contacts: 9 Number of Rows: 1 Body Orientation: Straight Compatible Pin Length: 4.22mm Tail Pin Length: 3.96mm Terminal Method: Solder Contact Material: Copper Phosphate Rated Current: 1A Board thread machined header strips mate with: SS Series Socket Strips - Typical Part Number; 767-9707 See 767-9707. SL Series Socket Strips - Typical Part Number; 767-9319 See 767-9319. Precision Thread Machined 2.54mm Header Terminal Strips - TS Series. TS series board-to-board through hole single row precision screw machined terminal header strips have a pitch spacing of 2.54mm and a tail length of 3.96mm. The body is black glass-filled polyester with 0.51 μm gold-plated phosphor bronze contacts. The operating temperature range for this terminal strip is -55 to +125°C.
