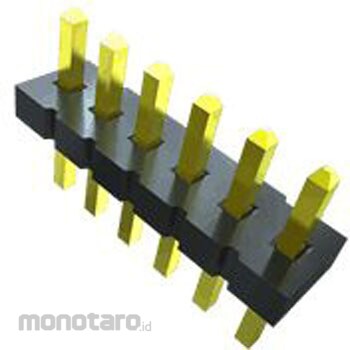

SAMTEC Samtec Pin Header FTS Series

Specification
Series: FTS Pitch: 1.27mm Number of Contacts: 50 Rows: 2 Body Orientation: Straight Corresponding Pin Length: 1.91mm Mounting Type: Surface Mount Terminal Method: Solder Type: Board to Board, Wire to Board Rated Current: 1.75A Surface Mount Micro Low Profile Terminal Strips - FTS Series. This FTS series by Samtec is a 1.27 mm pitch SMT micro low profile terminal strip with an overall body height of 1.27 mm. This FTS series micro low profile terminal strip mates with a suitable socket strip or IDC cable assembly. 0.25 μm gold-plated contacts, tin-plated tail Current rating: 1.75 A Operating temperature: -55 to +125 °C. Assembly and mating. Typical Part Number: 159-880 See 159-880 FTS-xxx-02-x-xx has 1.91 mm long posts and mates with FLE series sockets. Typical Part Number: 766-8959 See 766-8959 FTS-xxx-03-x-xx has 1.65 mm long posts and mates with CLP series sockets. Typical Part Number; 481-4695 See 481-4695
