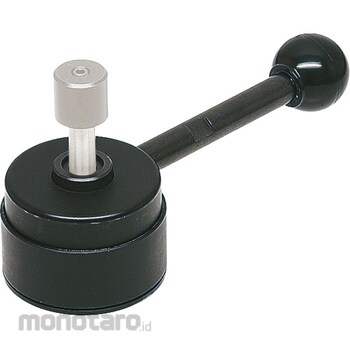

IMAO One-touch clamp Retractable clamp QLPD QLPD150NR
#Grup produk P115807592
Spesifikasi
| Clamp Mechanism | Spiral cam cam angle 4 ° |
|---|---|
| D | 40 |
| D1 | 13.5 |
| Dimension Dp (mm) | 18 |
| Dimension H (mm) | (±0.01)32 |
| Dimension M1 (mm) | M5x0.8 |
| Dimensions d (mm) | (G6)8 |
| Dimensions d1 (mm) | (F7)5 |
| H1 | 24.5 |
| H2 | 10 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| S | 1.5 |
| Thickness Tolerance (mm) | (Work thickness tolerance (mm)) Recommended: ±0.3 |
| Turning Direction | Right |
| Type | Made of phenolic resin |
| m | M4 x 0.7 depth 8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- RoHS compliant product. *Clamp pins are sold separately. [Tool-free lever-operated clamp] - One-touch clamps can be clamped and unclamped by operating a lever without the need for tools. - Tool-less operation significantly reduces the time required for attachment and detachment. It is particularly effective in tasks where workpieces must be attached and detached frequently, and also significantly reduces setup time. - Contributes to improved workability and productivity.
