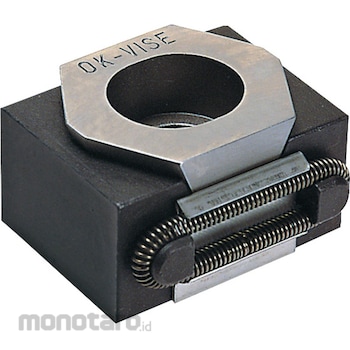

IMAO Clamp & Stopper OK Vise (Single Type) BK2, DK2, FK2 BK2-VT-S
#Grup produk P115789092
Spesifikasi
| Compatible Bolt | (For use at the T-groove) M8-20L (For use at the Neji acupoint) M8-20L |
|---|---|
| H | 15 |
| H1 | 2.5 |
| H2 | (Min) 4 (Max) 10 |
| L | (min) 27 (max) 31 |
| Mass (g) | 55 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| S | 1 |
| Type | Made of phenolic resin |
| W | 29 |
| W1 | 21 |
| l1 | (When using T-slot) 16 (When using screw hole) 16 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The V-shaped wedge has a multiplying effect, so it can easily obtain a strong clamping force by simply tightening with a hexagonal wrench. After tightening, the reaction forces of both jaws are combined and applied to the V-shaped wedge, so the jaws can maintain their strength and durability despite their thinness. This product complies with the RoHS directive.
