IMAO Air down clamp
#Grup produk P115778157
Spesifikasi

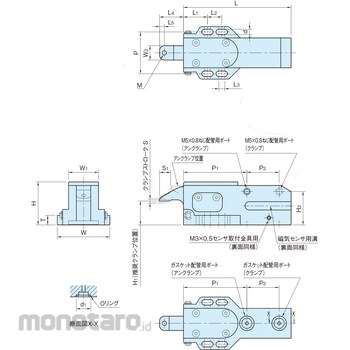

| Dimension H (mm) | 36 |
|---|---|
| Dimension H1 (mm) | 20 |
| Dimension H2 (mm) | 28 |
| Dimension L (mm) | 90 |
| Dimension L1 (mm) | 20 |
| Dimension L2 (mm) | 12 |
| Dimension L3 (mm) | 5 |
| Dimension L4 (mm) | 20 |
| Dimension P (mm) | 35 |
| Dimension P1 (mm) | 53 |
| Dimension S (mm) | 2 |
| Dimension T (mm) | 8 |
| Dimension W (mm) | 44 |
| Dimensions d (mm) | 4.5 |
| Dimensions d1 (mm) | 12.2 |
| Included Accessories | O-ring (P9) x 2 |
| Mass (g) | 250 |
| Material (Main Unit) | AC7A, anodized surface treatment |
| Operating Pressure (MPa) | 0.3~1.0 |
| Thread Diameter M | M4x0.7 |
