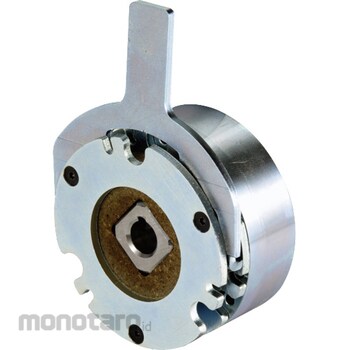

Miki pulley Non-excitation actuated brake BXW type BXW-03-12L-12V-8
#Grup produk P115763517
Spesifikasi
| Coil Capacity (W) | (at20°C)9 |
|---|---|
| Coil Current (A) | (at20°C)0.75 |
| Coil Voltage (V) | (at20°C)12 |
| Dimension A (mm) | [Radial direction] 56 |
| Dimension B (mm) | [Radial] 48 |
| Lever Type | With release lever |
| Series | BXW |
| Size | 3 |
| Static Friction Torque (N m) | 0.5 |
| Type | For braking |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- An electromagnetic brake that operates by the force of a spring when de-energized.
- Available in three types: S type for holding, L type for braking, and H type for both holding and braking.
- The optimum type can be selected based on the application and life cycle.
- The stator, which is the heat source, can be installed either inward or outward.
