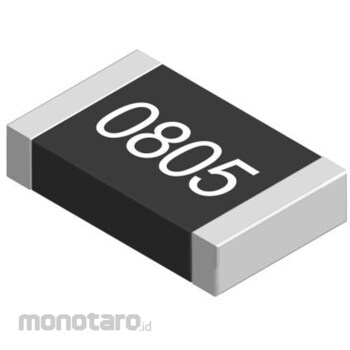

Panasonic SMD Resistor, 33mΩ, 0805 (2012M), 0.5W ERJ6BWFR033V
#Grup produk P115615007
Spesifikasi
| Maximum Operating Temperature (°C) | 155 |
|---|---|
| Minimum Operating Temperature (°C) | -55 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Power (W) | 0.5 |
| Resistance (MΩ) | 33 |
| Series | ERJ6BW |
| Standard | Car: AEC-Q200 |
| Technology | Thick film |
| Temperature coefficient | ±200ppm/°C |
| Tolerance | ±1% |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationIEC60115-8, JIS C5201-8, JEITA RC-2144. 0805 type ERJ 6BW series, 1%. Panasonic ERJ 6BW thick film chip resistors are lightweight and compact. ERJ 3BW resistors are constructed with three layers of electrodes and a metal-glazed thick film resistive element, creating a double-sided resistive element structure. This allows for extremely high power handling and excellent pulse withstand. These chip resistors offer low resistance values from 10 mΩ to 100 mΩ. Features and Benefits: AEC-Q200 qualified, current sensing, compact, low resistance, suitable for flow/reflow soldering. Applications: These current sensing resistors are AEC-Q200 qualified and suitable for automotive applications.
