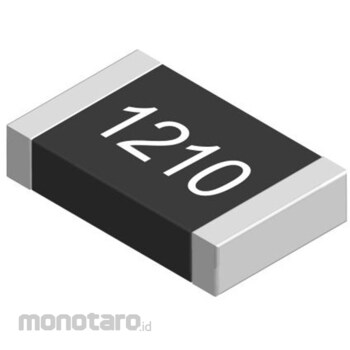

Panasonic SMD Resistor, 330mΩ, 1210 (3225M), 0.5W ERJ14BQFR33U
#Grup produk P115614503
Spesifikasi
| Maximum Operating Temperature (°C) | 125 |
|---|---|
| Minimum Operating Temperature (°C) | -55 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Power (W) | 0.5 |
| Resistance (MΩ) | 330 |
| Series | ERJ14B |
| Standard | Car: AEC-Q200 |
| Technology | Thick film |
| Temperature coefficient | ±200ppm/°C |
| Tolerance | ±1% |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Specification1210 Type Low Ohmic Resistor - 0.5 W. Panasonic's ERJ 14B thick film chip resistors are lightweight and compact. These resistors feature a triple-layer electrode and a metal glaze thick film resistive element for exceptional reliability. AEC-Q200 Qualified Current Sensing Small Size Low Resistance Suitable for Flow/Reflow Soldering Compatible with Placement Machines. Applications. These current sensing resistors are AEC-Q200 qualified and can be used in automotive applications.
