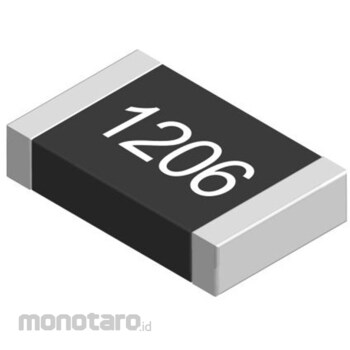

Panasonic SMD Resistor, 27mΩ, 1206 (3216M), 1W ERJ8CWFR027V
#Grup produk P115612143
Spesifikasi
| Maximum Operating Temperature (°C) | 125 |
|---|---|
| Minimum Operating Temperature (°C) | -55 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Power (W) | 1 |
| Resistance (MΩ) | 27 |
| Series | ERJ8CW |
| Standard | Car: AEC-Q200 |
| Technology | Thick film |
| Temperature coefficient | ±50ppm/°C |
| Tolerance | ±1% |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationIEC60115-8, JIS C5201-8, EIAK RC-2134Bs. 1206 format high-power/low-ohmic resistor - 1 W (double-sided resistive element). Panasonic's ERJ 8CW thick-film chip resistors are lightweight and compact. The ERJ 8BW resistors are constructed with three layers of electrodes and a metal-glazed thick-film resistive element, resulting in a double-sided resistive element structure. This allows for extremely high power handling and excellent pulse withstand capability. These highly reliable chip resistors are AEC-Q200 qualified, current sensing, compact, low resistance, suitable for flow and reflow soldering, and have a low TCR of ±50 x 10-6/°C. Applications. These chip resistors are AEC-Q200 qualified and suitable for automotive applications.
