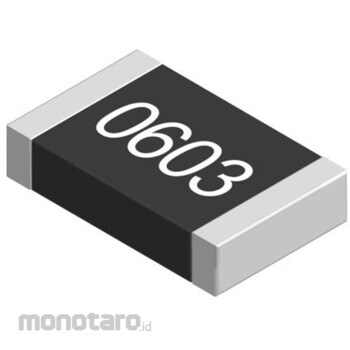

Panasonic SMD Resistor, 100mΩ, 0603 (1608M), 0.25W ERJ3BWFR100V
#Grup produk P115602641
Spesifikasi
| Maximum Operating Temperature (°C) | 155 |
|---|---|
| Minimum Operating Temperature (°C) | -55 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Power (W) | 0.25 |
| Resistance (MΩ) | 100 |
| Series | ERJ3B |
| Standard | Car: AEC-Q200 |
| Technology | Thick film |
| Temperature coefficient | ±150ppm/°C |
| Tolerance | ±1% |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationIEC 60115-8, JIS C5201-8, JEITA RC-2144. 0603 format high-power/low-ohmic resistor - 0.25 W (double-sided resistive element). Panasonic's ERJ 3BW thick film chip resistors are lightweight and compact. The ERJ 3BW resistors feature a double-sided resistive element with three layers of electrodes and a metal-glazed thick film resistive element. This allows for extremely high power handling and excellent pulse withstand capability. These chip resistors offer low resistance values ranging from 20 mΩ to 100 mΩ. AEC-Q200 qualified, current sensing, compact, low resistance, and ideal for flow and reflow soldering. Applications: These current sensing resistors are AEC-Q200 qualified and suitable for automotive applications.
