IEC60115-8, JISC5201-8, EIAKRC-2134B
1206 type ERJ8BW series-1%
Panasonic ERJ8BW thick film chip resistors are lightweight and small. The ERJ8BW resistor consists of three layers of electrodes and a metal glaze thick film resistor, resulting in a double-sided resistor structure. This results in extremely high power capability and excellent pulse tolerance. The resistance value of these chip resistors is as low as 10m→100m.
AEC-Q200 qualified low TCR current sensing Small size ideal for low resistance flow/reflow soldering.
Applications These chip resistors are AEC-Q200 qualified and suitable for automotive applications.

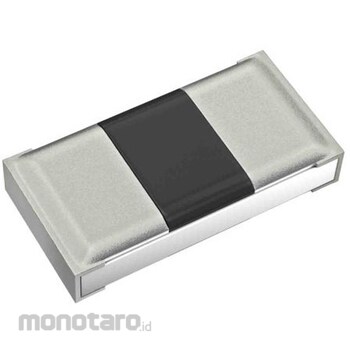

Panasonic SMD resistor 33mΩ 1206 3216M 1W 1 set 5000 pieces
#Grup produk P115591026
Spesifikasi
| AS ONE Part Number | 65-6942-42 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification*Quantity: 1 reel (5000 pieces)*Resistance: 33mΩ*Technology: Thick film*Package/Case: 1206 (3216M)*Tolerance: ±1%*Rated power: 1W*Temperature coefficient: ±150ppm/°C* Series: ERJ8BW*Operating temperature Min: -55°C*Operating temperature Max: +155°C
