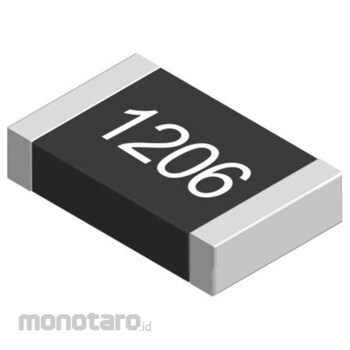

1206 anti-surge resistor, ERJP08 series - 1 % (10 Ω → 3 kΩ)
Panasonic ERJ P08 Anti-Surge Thick Film Chip Resistors consist of metal glazed thick film resistive elements with three layers of electrodes and a protective coating. This structure provides high reliability and allows reflow and flow soldering.
AEC-Q200 qualified 0.66 W high power rating Surge resistant Standard membrane
Panasonic SMD resistor 2.7kΩ 1206 3216M 0.66W 1 bag 5 pieces
#Grup produk P115586006
Spesifikasi
| AS ONE Part Number | 65-7208-32 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification*Resistance: 2.7kΩ*Technology: Thick film*Package/Case: 1206 (3216M)*Tolerance: ±1%*Rated power: 0.66W*Temperature coefficient: ±100ppm/°C*Automotive standard: AEC-Q200*Series: ERJP08*Operating temperature Min: -55°C*Operating temperature Max: +155°C
