IEC60115-8, JIS C5201-8, JEITA RC-2144
0805 ERJ 6BW series, 1%
Panasonic ERJ 6BW thick film chip resistors are lightweight and small. The ERJ 3BW resistor consists of three layers of electrodes and a metal glaze thick film resistor, resulting in a double-sided resistor structure. This results in extremely high power capability and excellent pulse tolerance. The resistance value of these chip resistors is 10 m → 1

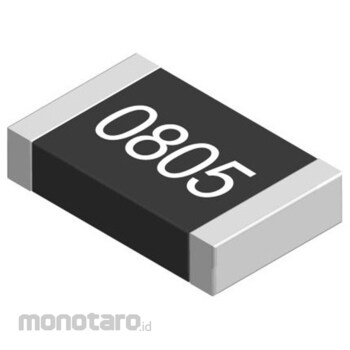

Panasonic SMD resistor 12mΩ 0805 2012M 0.5W 1 bag 5 pieces
#Grup produk P115581764
Spesifikasi
| AS ONE Part Number | 65-7203-59 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification*Resistance: 12mΩ*Technology: Thick Film*Package/Case: 0805 (2012M)*Tolerance: ±1%*Rated Power: 0.5W*Temperature Coefficient: ±300ppm/°C*Automotive Standard: AEC-Q200*Series: ERJ6BW *Operating temperature Min: -55°C *Operating temperature Max: +155°C
