IEC60115-8, JIS C5201-8, JEITA RC-2144
1206 type ERJL08 series - 1%
Panasonic's ERJ L08 thick film chip resistors are lightweight and small. The ERJ L08 resistor consists of a three-layer electrode and metal glaze thick film resistive element with low resistance values from 47 to 100 m.
AEC-Q200 qualified Current sensing Small size Low resistance Ideal for flow/reflow soldering

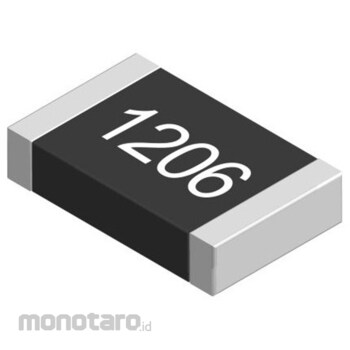

Panasonic SMD resistor 100mΩ 1206 3216M 0.25W 1 bag 5 pieces
#Grup produk P115579626
Spesifikasi
| AS ONE Part Number | 65-7204-68 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification*Resistance: 100mΩ*Technology: Thick Film*Package/Case: 1206 (3216M)*Tolerance: ±1%*Rated Power: 0.25W*Temperature Coefficient: ±100ppm/°C*Automotive Standard: AEC-Q200*Series: ERJL08 *Operating temperature Min: -55°C *Operating temperature Max: +125°C
