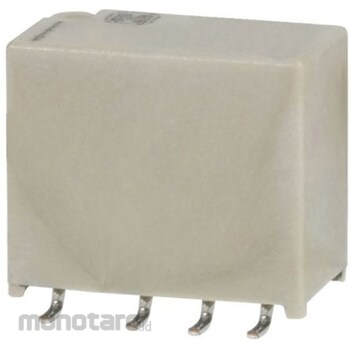

Panasonic Signal Relay DPDT 24V dc FTR-B3
#Grup produk P115577026
Spesifikasi
| Coil Voltage (V) | 24/dc |
|---|---|
| Contact Configuration | DPDT |
| Dimensions (mm) | 10x9x5.7 |
| Height (mm) | 9 |
| Length (mm) | 5.7 |
| Maximum Switching Power (DC W) | 30 |
| Maximum Switching Voltage (AC V) | 125 |
| Maximum Switching Voltage (DC V) | 110 |
| Number of Poles | 2 |
| Operating Temperature Range (°C) | -40 -> +85 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Terminal Type | Board pin |
| Type of Sign | Surface mount |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationCSA, UL. AGN Series. This ultra-miniature PCB-mount polarized relay has a compact, slim body with a height of just 9 mm and a surface area of only 5.7 x 10.6 mm. It also achieves excellent surge resistance and packaging density, and is highly vibration- and shock-resistant. Typical applications include communication and measurement equipment, audio/visual equipment, etc. Twin crossbar contacts ensure reliable contact High surge resistance Small, slim body (9 x 5.7 x 10.6 mm) Sealed construction allows for automatic cleaning Typical applications include communication and measurement equipment, audio/visual equipment, etc.
