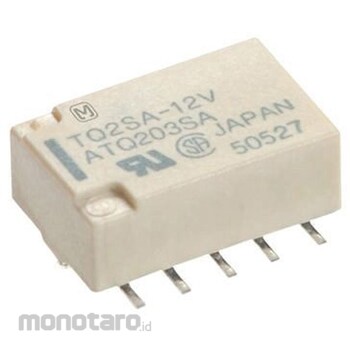

Panasonic Signal Relay DPDT 12V dc
#Grup produk P115577008
Spesifikasi
| Coil Voltage (V) | 12/dc |
|---|---|
| Contact Configuration | DPDT |
| Dimensions (mm) | 14x5.6x9 |
| Height (mm) | 5.6 |
| Length (mm) | 14 |
| Maximum Switching Power (DC W) | 60 |
| Maximum Switching Voltage (DC V) | 220 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Switching Current (A) | 2 |
| Terminal Type | SMD tab |
| Type of Sign | Surface mount |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationUL recognized, CSA. For through-hole types, see typical part number: 113-8825. TQ2 Series, Latching. These low-profile PCB surface-mount relays are only 6mm high, yet offer 2A capacity and high sensitivity. Flat, compact body and low-profile surface-mount terminals. High frequency characteristics. Compatible with SMD automatic insertion. Low thermal EMF (approx. 2μV). Nominal operating power: 280mW / 1 coil latching type: 200mW. Ideal for communications applications, measurement, QA equipment, etc.
