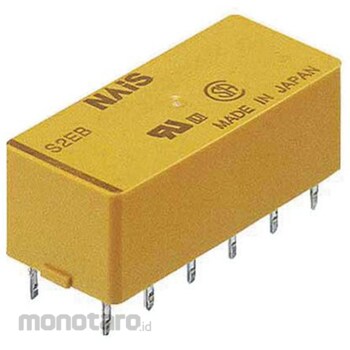

Panasonic Power Relay 12V dc, 2c Contact, PCB Mount Type
#Grup produk P115567287
Spesifikasi
| Coil Voltage (V) | 12/dc |
|---|---|
| Contact Configuration | DPDT |
| Length (mm) | 28 |
| Maximum Switching Power (DC W) | 90 |
| Maximum Switching Voltage (AC V) | 250 |
| Maximum Switching Voltage (DC V) | 48 |
| Minimum Operating Temperature (°C) | -55 |
| Number of Poles | 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Switching Current (A) | 3 |
| Terminal Type | Board pin |
| Type of Sign | Board mounting |
| coil Electricity (mW) | 200 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationUL, CSA. S Series Relays. These PCB mount power relays are reliable, efficient, long-lasting, and offer a wide range of control functions. They also offer high sensitivity, vibration and shock resistance, and low thermal EMF. Low profile, highly sensitive relay. Excellent resistance to vibration and shock. Low EMF (approx. 0.3 μV). DIL terminal arrangement fits 2.54 mm grid. Dimensions: H 10 x W 28 x D 12 mm. See part number 127-9342 for available PCB mount sockets.
