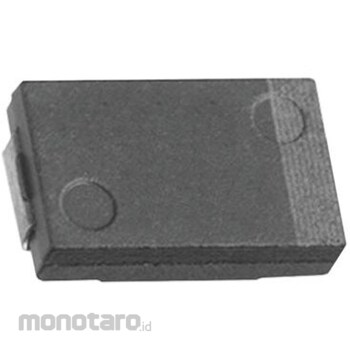

Panasonic Polymer Capacitor, CX, 470μF, 2V dc, EEFCX0D471R
#Grup produk P115562981
Spesifikasi
| Capacitance | 470μF |
|---|---|
| Dimensions (mm) | 7.3x4.3x1.9 |
| Leakage Current (μA) | 94 |
| Length (mm) | 7.3 |
| Maximum Operating Temperature (°C) | 105 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Series | CX |
| Surface Mount Device | Surface mount |
| Technology | polymer |
| Tolerance | ±20% |
| Voltage (V) | 2dc |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationSP-CAP C Series. Panasonic CS, CT, and CX series surface mount SP-Cap conductive polymer aluminum electrolytic capacitors. SP-CAP multilayer aluminum technology provides a lower profile and stable capacitance at high frequencies and temperatures. SP-Cap is ideal for A/V, PC, and consumer handheld device applications. These parts are suitable for applications where capacitor height restrictions are strict. Features and Benefits: CX, CT, and CX series are low-profile, high-voltage products: 10 V dc to 35 V dc, high ripple current, operating temperature range: -55 to +105°C, nominal capacitance range: 10 μF to 100 μF, capacitance tolerance: ±20%, RoHS compliant, low profile (height 1.1 mm, 1.4 mm, 1.9 mm)
