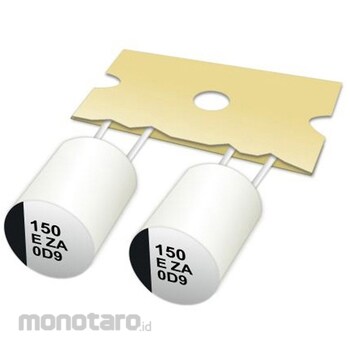

Panasonic Electrolytic capacitor 560μF 25V dc 1 set 2 pieces
#Grup produk P115550083
Spesifikasi
| AS ONE Part Number | 65-6966-12 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Panasonic ZS series conductive polymer hybrid aluminum electrolytic capacitors have a tolerance of ± 20% and are used at voltages of 25 V. It has a capacitance of 560 μF, size code G16, and ultra-low ESR between 11 mΩ → 19 mΩ. Durability: 4000 hours (125°C (Large capacity / High ripple current / Low ESR) Taping product for automatic insertion Compliant with AEC-Q200
Feature
Specification*Quantity: 1 tape (2 pieces) *Capacitance: 560μF *Voltage: 25V dc *Mounting type: Through hole *Technology: Hybrid *Dimensions: 10 x 15.7 x 0.8mm *Length: 15.7mm *Diameter: 10mm*Operating temperature Max: +125°C*Lead spacing: 5mm
