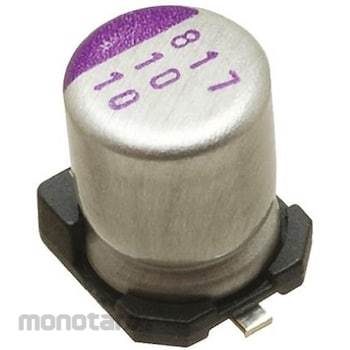

OSCON Solid Electrolytic SVPF Series Panasonic's OS-CON SVPF electrolytic capacitors have solid aluminum construction and use highly conductive polymers. These aluminum capacitors are compatible with high voltages up to 50 V dc and have large capacitances up to 1000 μF.
Surface mount 5000 hours guaranteed @ +105°C Excellent noise rejection Long life High voltage High reliability High ripple current Halogen fluoride
Panasonic Capacitor 56μF 20V DC 1 bag 5 pieces
#Grup produk P115538142
Spesifikasi
| AS ONE Part Number | 65-7187-89 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification* Technology: Polymer * Capacitance: 56 μF * Voltage: 20V dc * Mounting type: Surface mount * Equivalent series resistance: 30 mΩ * Lead spacing: 1.4 mm * Tolerance: ±20% * Length: 5.9 mm * Height: 5.9mm*Dimensions: 5 (Dia) x 5.9mm*Series: SVPF*Electrolyte type: Solid*Dissipation factor: 12%
