HD Series Panasonic HD Series Type V electrolytic capacitors have a durability of 5000 hours at +105°C. Products with the part number suffix "A" and 6.3 to 35 V can withstand the high temperatures of lead-free reflow soldering.
AEC-Q200 qualified (some deviations apply) High ripple current High reliability Low impedance Long life Surface mount.
Application Panasonic HD series type V electrolytic

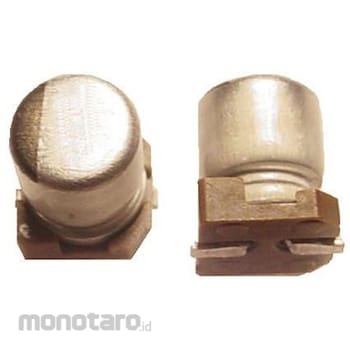

Panasonic Capacitor 4.7μF 35V DC 1 set 2000 pieces
#Grup produk P115532467
Spesifikasi
| AS ONE Part Number | 65-6942-06 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification*Quantity: 1 reel (2000 pieces) *Capacitance: 4.7μF *Voltage: 35V dc *Mounting type: Surface mount *Technology: Electrolytic *Dimensions: 4 (Dia.) x 5.8mm *Height: 5.8mm *Operating temperature Min: -40°C*Diameter: 4mm*Operating temperature Max: +105°C*Life span: 5000h*Equivalent series resistance: 12Ω
