IEC60947-5-1, EN60947-5-1, JIS C8201-5-1, UL508, CSA C22.2 No
14

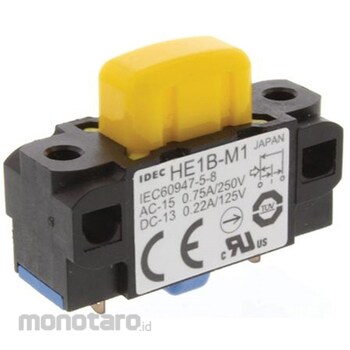

IDEC HE1B Series Basic Enabling Switch This function is designed for use as an enabling switch on a teach pendant and can accommodate panic situations where it must be released or pushed to toggle to the off position. Releasing from "off" position 3 to "off" position 1 does not close the contacts.
Accurate contact movement ensures that the contacts do not weld Three positioning functions (off-on-off) required for robot control
IDEC Enabling Switch Latch Front Single Pole Single Throw SPST
#Grup produk P115495810
Spesifikasi
| AS ONE Part Number | 65-7816-89 |
|---|---|
| Contact Configuration | 1 contact (3 positions) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Mounting Side | Side mounting type |
| Operating Frequency (operation/hour) | 1200 |
| Pollution Degree (Environment to Use) | 2 |
| Rated Insulation Voltage (V) | 250 |
| Specification | Impulse withstand voltage (kV): 2.5 |
| Storage Temperature (°C) | -45 to 80 (but do not freeze) |
| Terminal Shape | Solder terminal |
| Vibration Resistance (Destruction) | 16.7Hz, single amplitude 1.5mm |
| Vibration Resistance (Malfunction) | 5-55Hz, single amplitude 0.5mm |
