RS PRO RS PRO, key switch, 2 notches 2
#Grup produk P115475612
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

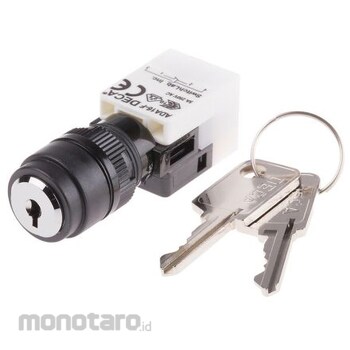

SpecificationNumber of Positions: 2, Actuator Type: Key, Contact Configuration: NO/NC, Key Extraction Position: Center, IP Rating: IP65, Current Max: 8 A, Cutout Diameter: 18 mm, Terminal Type: PCB Pin, Maximum AC Voltage: 250 V, Switch Action: Momentary. Two keys are included; spare keys are not currently available. RS IP65 Key Switch (16 mm). This key switch fits into industry-standard 16 mm diameter cutouts in panels 0.5 to 5 mm thick. Each key switch provides IP65-rated waterproof panel sealing. This two-position key switch has the same (common) key profile as a single-entry key (which can only be inserted into the lock with the key facing up). Waterproof rating: IP65 Panel cutout diameter: 16 mm VDE rated 5 A 250 Vac (8 A 125 Vac) Silver contacts Insulation resistance >50MΩ Flammability rating: UL94-V0 Operating temperature range: -25 to +55°C
