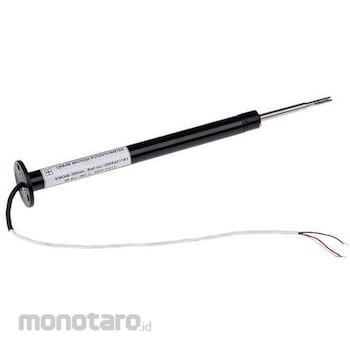

RS PRO RS PRO Winding potentiometer
#Grup produk P115459997
Sebelum PPN:
Rp3.099.900 - Rp55.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

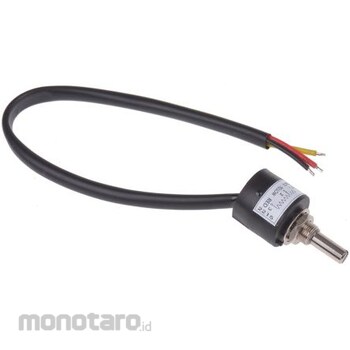

SpecificationMaximum Resistance: 1kΩ Number of Turns: 1 Power Rating: 1W Mounting Hole Diameter: 15mm Element Material: Wirewound Mounting Type: Panel Mount Termination Style: Solder Shaft Length: 25mm Shaft Diameter: 6mm Tolerance: ±10% Series: P25 RS 25 mm Wirewound Potentiometer. This series of RS potentiometers has resistance options between 100 Ω to 25 kΩ. This is a single turn wire wound potentiometer. Shaft rotation life is 100,000 times. < 842-7116') 842-7116/ and < 842-7119') 842-7119/ are capable of continuous rotation and provide an electrical angle of 34°±5%. This potentiometer has a resistance tolerance of ±20%, but best is 10%. 285° rotation (mechanical angle) Rated power 1 W
