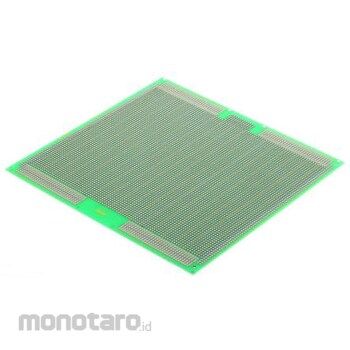

RS PRO RS Pro Universal board 233.4mm x 220mm
#Grup produk P115455450
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationSides = 2 Hole Pitch = 2.54 x 2.54mm Dimensions = 233.4 x 220mm Length = 233.4mm Width = 220mm PCB Material = Epoxy Resin Glass Laminate Hole Diameter = 1.02mm FR Material Grade = FR4 Copper Thickness = 35μm Connection = DIN 41612 Square Pads and Metal Foil Laminate Holes. Metal foil laminate allows wires to be placed in the same holes as the component tails for a solid solder connection. It has a DIN41612 connector with 96/96 contacts on each end. Power rails run the length of the board. A ground plane is included to ensure maximum shielding on the component side.
