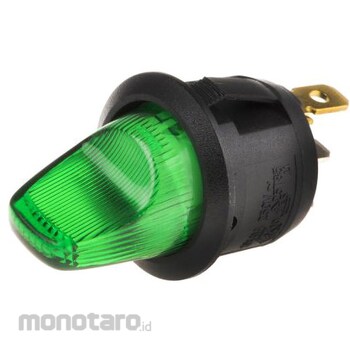

RS PRO RS Pro toggle switch SPST On-Off
#Grup produk P115454655
Spesifikasi
| Actuator Length (mm) | 16 |
|---|---|
| Belt-End Finish | tab |
| Contact Configuration | SPST |
| Cutout Diameter (mm) | (Panel) 20.2 |
| Lighting | Yes |
| Material (Actuator) | PC |
| Operating Patterns | On-Off |
| Operating Temperature Range (°C) | -20~85 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Voltage (V) | 250 |
| Standard | CQC,CSA,ENEC,UL,VDE |
| Surface Mount Device | Panel mount |
| Voltage (V) | AC100 (necessary to light the bulb) |
| contact Current Rating (A) | 16@125Vac |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationCSA (File No. UL45128), VDE (File No. 11037-4401), UL, ENEC, CQC, RS illuminated toggle switches feature a stylish, ergonomic design with an illuminated paddle actuator. Available in three vibrant green, amber, and red illumination options, these round snap-in switches are easy to mount on panels, and feature a UL94V-2 compliant nylon housing and 4.8mm blade-type terminals.
