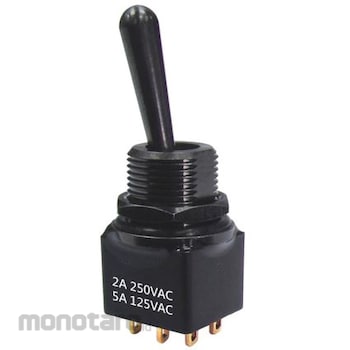

RS PRO RS Pro Toggle Switch DPDT (On) -Off-On

Specification
Contact Configuration = DPDT Switch Action = (On)-Off-On Contact Current Rating = 5 A @ 250 V ac Mounting Type = PCB Terminal Type = Solder Lug IP Rating = IP67 Actuator Length = 18mm Actuator Material = Brass Contacts Resistance = 10mΩ Operating Temperature Max = +85°C IP67 Sealed Miniature Toggle Switch - RS Series. This fully sealed switch has a double shell case for enhanced mechanical strength and high electrical isolation. This switch has two "O" ring front seals that maintain a seal during operation. The back of the switch is also fully sealed to protect it from running water. The contacts are ideal for both low level switching (10 mA 50 mV -> 10 μA, down to 5 V dc) and power applications (3A @ 250 V ac).
