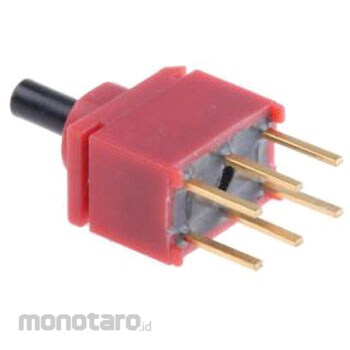

RS PRO RS Pro Toggle Switch DPDT (On) -Off-On

Specification
Contact Configuration = DPDT Switch Action = (On)-Off-On Contact Current Rating = 400 mA @ 20 V Mounting Type = Through Hole Terminal Type = Through Hole IP Rating = IP67 Panel Cutout Width = 4.5mm Panel Cutout Cutout Height = 7mm Actuator Length = 7mm Actuator Material = Glass Fiber Reinforced Nylon Contact Resistance = 100mΩ Operating Temperature Range = -30 to +85°C IP67 Sealed Subminiature Toggle Switches - RS Series. Miniature toggle switches have low contact resistance and the contact material is gold. This RS series ultra-miniature toggle switch has a minimum insulation resistance of 500 MΩ and a minimum dielectric strength of 500 Vrms (@0 m above sea level).
