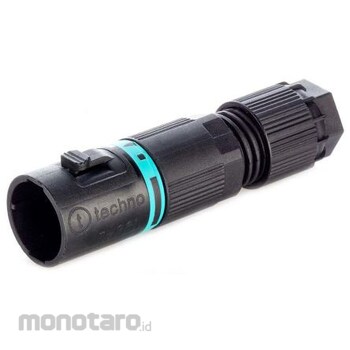

RS PRO RS PRO TeePlug Series Lighting Connector 2

Specification
Pole type: 2 * Series: TeePlug * Male / Female: Male * Number of positions: 1 * Plug / Socket: Plug * Color: Black * Type: T-shaped plug * Mounting type: Cable mount * Rated current: 10A * Rated voltage: 400 V * IP protection grade: IP68 * Cable size: 5.8 -> 6.9 mm * Contact material: brass * RS Pro TeePlug TH381 waterproof circular micro connector. RS Pro TeePlug TH381 waterproof circular micro plug / socket connector has a diameter of 14 mm It is small and designed for lighting applications in harsh environments and underwater. The TH381 Waterproof Circular Lighting Connector is tested and certified according to IP68 / IP69K. These degrees of protection protect the electrical connections from permanent immersion, high-pressure water streams, and dust and dirt ingress. The TH381 Waterproof Lighting Micro Connector has a push-pull coupling connection mechanism for quick and easy mating. When fully mated, the locking latch clicks to prevent unintentional separation. It can withstand pulls of up to 25 kg (8 kg for EN61535). The quick release version (THB.381.xxA) can be separated by pressing down on the latch. A safety feature has been added to the locking version (THB.381.xxB) and can only be separated using a flathead screwdriver. These waterproof circular micro plug and socket connectors are available in two different mounting methods for cable or panel mounting and two sizes depending on the cable diameter. Features and benefits. Miniature design with a diameter of 14 mm IP68 class dust and water proof performance (IP68 30 m / 1 hour) IP69K class high pressure water protection performance (up to 100 Br, 16 L / min) Push for quick and easy mating Pull coupling mechanism Strong holding force up to 25 kg Easy release quick release version Safety enhanced locking version. Product application information. TeePlug TH381 Waterproof Circular Micro Connector is high IP grade and compact for outdoor lighting Designed for use. Main applications include architectural lighting, street lighting, underwater lighting, lighting for road signs and billboards, connecting interior and exterior class 2 electrical devices, etc.
