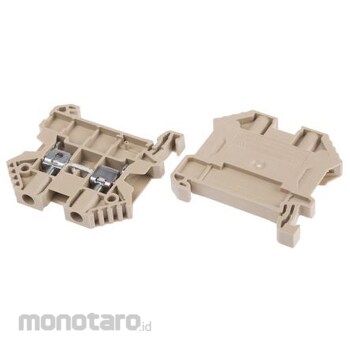

RS PRO RS PRO standard DIN rail terminal SRK series

Specification
Series: SRK Cable size: 22 -> 8 AWG Cable CSA: 6mm2 Color: Beige Rated current: 65A Number of levels: Double Terminal method: Embedded screw Rated voltage: 1 kV Pitch: 8.1mm Operating temperature Min: -40°C Operating temperature Max: +120°C Standard Feedthrough - Pluggable Cross Connection System. A series of standard feedthrough DIN rail terminals with an easy-to-use screw-on connection mechanism that can connect solid and flexible wires with or without wire terminating ferrules. It has been. A pluggable insulated cross-connect system can distribute the potential of different terminal blocks in a shorter time and at a lower cost than a screw-type cross-connect system. The advantage of this enhanced system is the ability to cross-connect adjacent terminals of different sizes. Two cross connect channels allow an infinite number of terminals to be daisy chained. The ground terminal can be fitted onto the DIN rail without screwing. This standard terminal series has a maximum operating temperature of 120°C and offers excellent heat resistance. The screw head of the standard terminal is fully recessed into the body so that no metal parts are ejected when the terminal screw is tightened. Terminal material: Polyamide PA 6.6 UL94-V0 Operating temperature range: -40 to +120 °C Toxins free such as halogen and phosphorus All terminals have the same height and depth, and the wiring entry height is also the same
