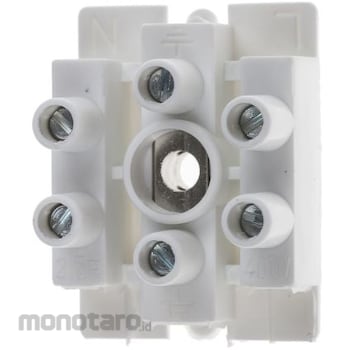

RS PRO RS PRO Relay terminal block BM M096 3 poles
#Grup produk P115405233
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationNumber of Poles: 3 Mounting Type: Panel Mount Terminal Method: Screw Cable Size: 2.5 mm2 Material: Polyamide Rated Voltage: 400 V Operating Temperature Max: +100°C Contact Material: Brass, Nickel Plated Contact Plating: Nickel UL94 V-2, IEC695 850 °C according to -2-1 and IEC 695-2-2 EN60998-1 EN60998-2-1. 3-pole terminal blocks with direct earth connection. Form a ground connection through the 10 holes. Housing material: Polyamide (PA 6) white Self-extinguishing: 850 °C according to UL94 V-2, IEC695-2-1 and IEC695-2-2 Maximum operating temperature: 100 °C Short-term temperature: 160 °C Nominal cross-section : 2.5 mm2 Rated voltage: 400 V Test voltage: 2500 V Test current: 24 A Clamp and ground connection: Nickel-plated brass Screws: Galvanized steel M3x6
