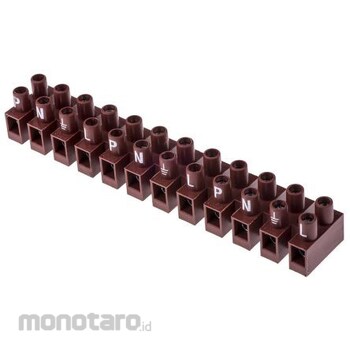

RS PRO RS PRO Relay terminal block BM 94GFCST 12 poles
#Grup produk P115404933
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationNumber of Poles: 12 Mounting Type: Panel Mount Pitch: 12mm Terminal Method: Screw Cable Size: 4 mm2 Material: Polyamide Rated Voltage: 400 V Operating Temperature Max: +125°C Contact Material: Brass, Nickel Plated Contact Plating: Nickel UL94V-0 EN60335-1: 2002 + A2: 2006 (SC 30.2.3) IEC / EN60695-2-11 CE. Heat resistant nylon terminal block, 12 poles, 6 mm2 (18-10 AWG). Natural color heat resistant nylon/fiberglass. Terminal block (12 poles, 41 A test current). Housing: Nylon-polyamide (PA 6.6) with 25% glass fiber, UL94V-0 Maximum continuous operating temperature: 140 °C, short-term operating temperature: 200 °C Rated voltage: 400 V Test voltage: 2500 V Test current: 41 A ( 6 mm2) Clamp: Nickel-plated brass Screw: Galvanized steel M3.5 x 7
